387-017-559-104

Edgeboard Connectors Overview

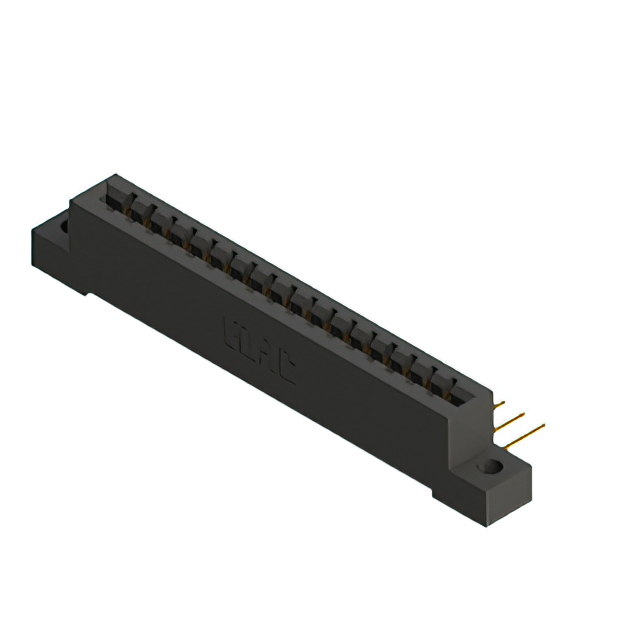

The EDAC Inc. 387-017-559-104 is a single-row female card edge connector designed for through-hole mounting. It features 17 positions with a 0.156-inch (3.96mm) pitch and accepts board thicknesses between 0.054 and 0.070 inches. The contacts are made of copper alloy with a gold plating finish, housed in black thermoplastic polyester insulation. This component supports wire wrap termination and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Single-edge female contact configuration for reliable signal transmission
• Gold-plated copper alloy contacts ensure low resistance and durability
• Thermoplastic polyester insulation provides thermal stability and structural integrity

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Consumer electronics circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific flange feature and termination style against the official datasheet before ordering. Confirm that the required board thickness falls within the specified tolerance range. Ensure compatibility with existing wire wrap tools and assembly processes. Cross-reference the manufacturer part number with authorized distributor catalogs to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this connector when a single-row interface with a 0.156-inch pitch is required. Consider the wire wrap termination method for high-reliability applications. Evaluate the operating temperature range to ensure suitability for the intended environment. Verify mechanical fit including flange dimensions and mounting orientation constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 387 series of standard card edge connectors. The series offers various pin counts and termination options to accommodate diverse design requirements. The 387 series is characterized by its robust construction and consistent electrical performance across different configurations.

Edgeboard Connectors Replacement Considerations

Consult the official 337/387 Series Ordering Guide for verified substitute part numbers. Ensure any replacement matches the pin count, pitch, and termination type. Verify that alternative components meet the same environmental and mechanical specifications.
