395-005-525-612

Edgeboard Connectors Overview

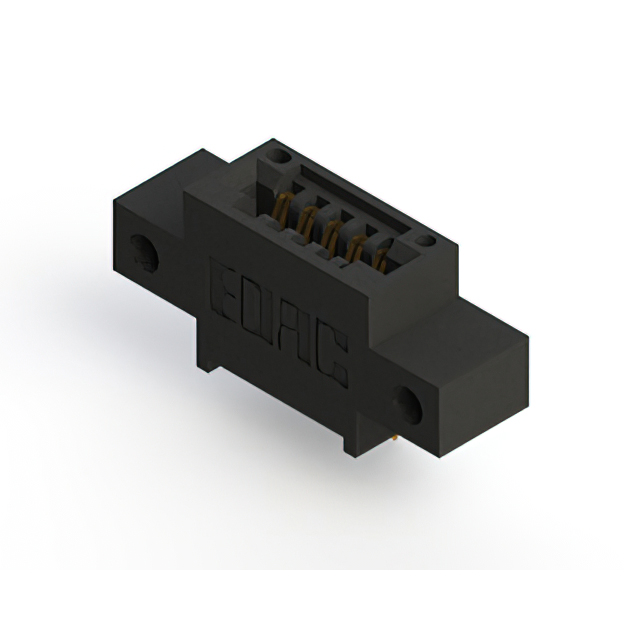

The EDAC Inc. 395-005-525-612 is a standard card edge connector featuring a single row of five female positions with a 0.100 inch (2.54 mm) pitch. It utilizes gold-plated copper alloy contacts and a thermoplastic polyester housing. Designed for panel mounting at a vertical angle, the unit supports a maximum operating temperature of +105°C and a minimum of -40°C. The connector accommodates a board thickness of 1.57 mm and provides an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Single row female contact configuration
• Gold-plated copper alloy terminals
• Thermoplastic polyester insulating housing

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies
• Vertical interconnection systems
• Standard card edge circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility with target board thicknesses and mating requirements. Ensure that environmental ratings meet operational temperature extremes. Confirm RoHS compliance status through current datasheets before final procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a single-row, five-position interface is required for vertical panel mounting. Consider the 0.100-inch pitch and 1.57 mm board thickness constraints. Evaluate the gold plating for corrosion resistance needs and verify thermal limits align with system operating conditions.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and configurations designed for reliable electrical connections in industrial and commercial applications. The 395-005-525-612 represents a specific variant within this family optimized for single-row deployment.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference lists for verified substitutes. Generic equivalents may not match the precise housing material or contact plating specifications required for original equipment compatibility.
