464-10-206-00-580000

Headers, Male Pins Overview

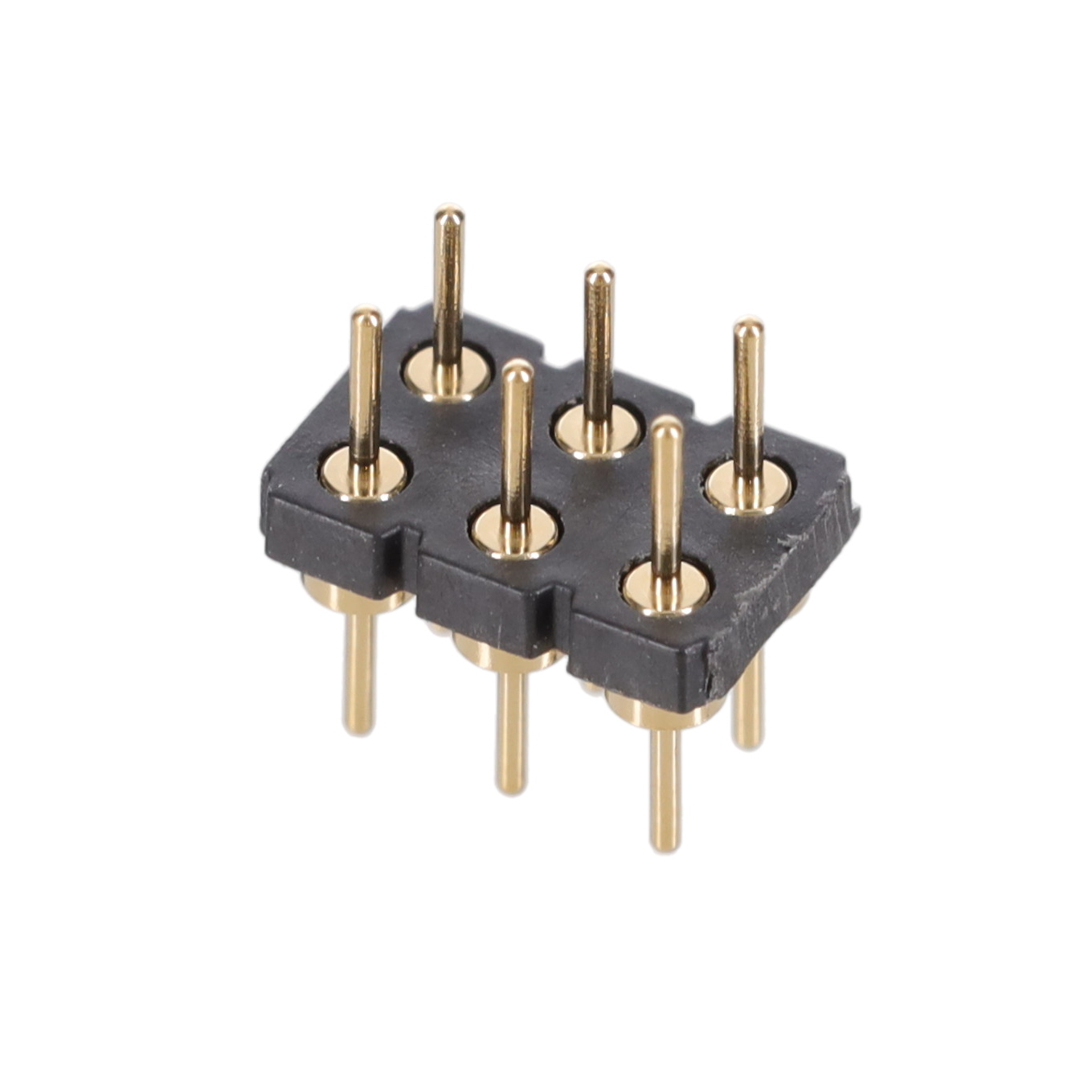

The Mill-Max 464-10-206-00-580000 is a dual-row IC and component socket header designed for through-hole mounting. It features 6 positions with a 0.100-inch (2.54mm) pitch. The connector utilizes gold-plated brass alloy contacts to ensure reliable signal transmission. This unshrouded header is part of the standard 464 series, offering a robust mechanical interface for integrating integrated circuits into printed circuit board assemblies.

Headers, Male Pins Feature Summary

• Dual-row configuration for high-density pin arrangements
• Gold-plated contact surfaces for corrosion resistance
• Through-hole termination method for secure PCB attachment

Headers, Male Pins Applications

• IC socketing applications
• Component testing fixtures
• Prototype development boards

Headers, Male Pins Procurement Notes

Verify the specific contact plating thickness and material composition against the official Mill-Max datasheet before integration. Confirm that the through-hole footprint matches the target PCB design requirements. Ensure compatibility with mating components regarding pin count and row spacing specifications.

Headers, Male Pins Selection Notes

Select this component when a low-profile, dual-row header is required for direct IC insertion. Consider the 2.54mm pitch constraint for trace routing density. Evaluate the mechanical stability needs against the unshrouded design characteristics. Verify thermal and electrical ratings align with the application environment.

Headers, Male Pins Part Context

This part belongs to the Mill-Max 464 series of standard pin headers. The series is characterized by precision-machined contacts and standardized dimensions. It serves as a fundamental interconnect solution within the broader category of IC sockets and component connectors manufactured by Mill-Max Manufacturing Corp.

Headers, Male Pins Replacement Considerations

Cross-reference with other 464-series variants such as 464-10-208-00-580000 or 464-10-210-00-580000 if different pin counts are needed. Ensure any substitute maintains the same 2.54mm pitch and dual-row architecture to preserve mechanical fit.
