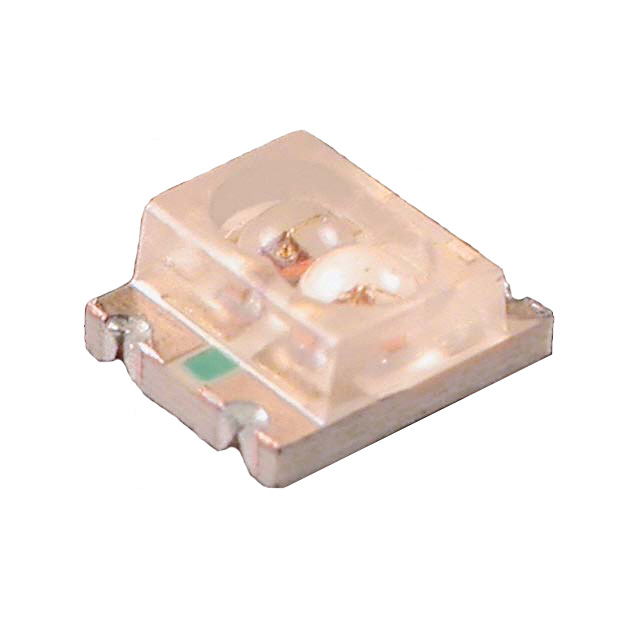

APBL3025ESGC-F01

$0.48

Description：LED GREEN/RED CLEAR SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:e753e622c7e2 Category: LED Indication - Discrete Brand: Kingbright

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

APBL3025ESGC-F01 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Kingbright. Its product description is LED GREEN/RED CLEAR SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for APBL3025ESGC-F01

Description：LED GREEN/RED CLEAR SMD
Series：-
Mfr：Kingbright
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green, Red
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：20mcd Green, 15mcd Red
Lens Style：Rectangle with Flat Top
Lens Size：2.00mm x 2.50mm
Voltage - Forward (Vf) (Typ)：2.2V Green, 2V Red
Current - Test：20mA Green, 20mA Red
Viewing Angle：100°
Mounting Type：Surface Mount
Wavelength - Dominant：568nm Green, 617nm Red
Wavelength - Peak：565nm Green, 627nm Red
Features：-
Package / Case：4-SMD, No Lead
Supplier Device Package：SMD
Size / Dimension：3.00mm L x 2.50mm W
Height (Max)：1.40mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for APBL3025ESGC-F01

APBL3025ESGC-F01

LED Indication - Discrete Overview

The APBL3025ESGC-F01 is a dual-color surface-mount LED by Kingbright, featuring green and red emitters in a 1210 (3025 metric) package. It utilizes a 4-SMD, no-lead configuration with a rectangular lens style. The device operates at a maximum forward current of 20mA per color, with typical forward voltages of 2.1V for green and 2.0V for red. Peak wavelengths are specified at 574nm for green and 630nm for red. The component offers a viewing angle of 100 degrees and complies with RoHS3 standards.

LED Indication - Discrete Feature Summary

Dual-color emission capability combining green and red light sources within a single compact footprint
Surface-mount design optimized for automated assembly processes on printed circuit boards
Rectangular lens geometry providing consistent optical output characteristics

LED Indication - Discrete Applications

Status indication in electronic equipment
Panel indicator applications requiring multi-state signaling
Consumer electronics display modules

LED Indication - Discrete Procurement Notes

Verify the specific suffix against the manufacturer's official datasheet to confirm exact wavelength and luminous intensity specifications. Ensure compatibility with standard reflow soldering profiles defined for moisture sensitivity level 3 components. Confirm that the 1210 package dimensions align with the target PCB land pattern requirements before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when space-constrained designs require distinct green and red status indicators without increasing board area. Consider the 100-degree viewing angle for visibility requirements and verify that the 20mA drive current matches the system's power budget constraints. Ensure the rectangular lens shape meets aesthetic or optical diffusion needs compared to domed alternatives.

LED Indication - Discrete Part Context

This part belongs to the APB series of surface-mount LEDs from Kingbright, designed for high-density mounting applications. The 1210 form factor represents a standard industry size balancing component visibility with board real estate efficiency. It serves as a direct replacement option for legacy through-hole dual-color indicators in modern SMT-based manufacturing environments.
