APTM120U10SAG

Single FETs, MOSFETs Overview

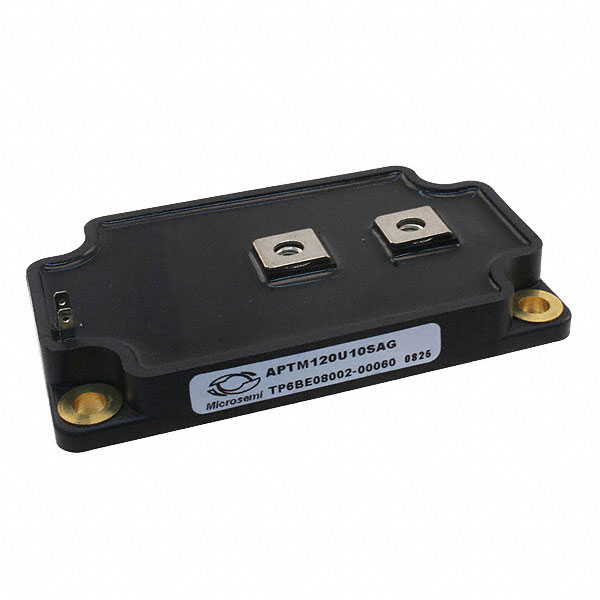

The APTM120U10SAG is a silicon N-channel MOSFET module manufactured by Microchip Technology. It features a single switch configuration with series and parallel diodes housed in an SP6C package. The device supports a drain-to-source voltage of 1200 V and a continuous drain current of 116 A at case temperature. Key electrical parameters include a typical on-resistance of 100 mΩ and a power dissipation rating of 3290 W at case temperature.

Single FETs, MOSFETs Feature Summary

• Integrates a single N-channel MOSFET switch with associated series and parallel diodes for efficient power conversion.
• Utilizes silicon technology to provide robust switching capabilities within a compact SP6C chassis mount package.
• Designed for high-power applications requiring low on-resistance and high thermal performance.

Single FETs, MOSFETs Applications

• Industrial motor drives
• Uninterruptible power supplies
• High-frequency power converters

Single FETs, MOSFETs Procurement Notes

Verify the specific revision level and datasheet version before procurement, as component specifications may evolve through product change notifications. Confirm that the SP6C package dimensions match your mechanical design constraints. Ensure thermal interface materials are compatible with the chassis mount requirements specified in the official documentation to maintain optimal heat dissipation.

Single FETs, MOSFETs Selection Notes

Select this module when a 1200 V rating and 116 A continuous current capacity are required in a single-switch configuration. The SP6C package is suitable for chassis mounting applications where space efficiency and thermal management are critical. Consider the 100 mΩ on-resistance for conduction loss calculations and ensure the gate drive circuitry aligns with the MOSFET's switching characteristics.

Single FETs, MOSFETs Part Context

This component belongs to Microchip Technology's discrete and power modules category, specifically under MOSFET modules. It is part of the PM-MOSFET-7-SP6C family, designed for industrial and commercial power electronics. The module integrates multiple semiconductor dies into a single unit to simplify assembly and improve reliability compared to discrete component solutions.

Single FETs, MOSFETs Replacement Considerations

Consult official substitution guides or contact Microchip Technology directly for verified equivalent parts. Do not assume cross-compatibility with other manufacturers' modules without verifying pinout, thermal resistance, and electrical parameter alignment against the original datasheet.
