APTML100U60R020T1AG

Single FETs, MOSFETs Overview

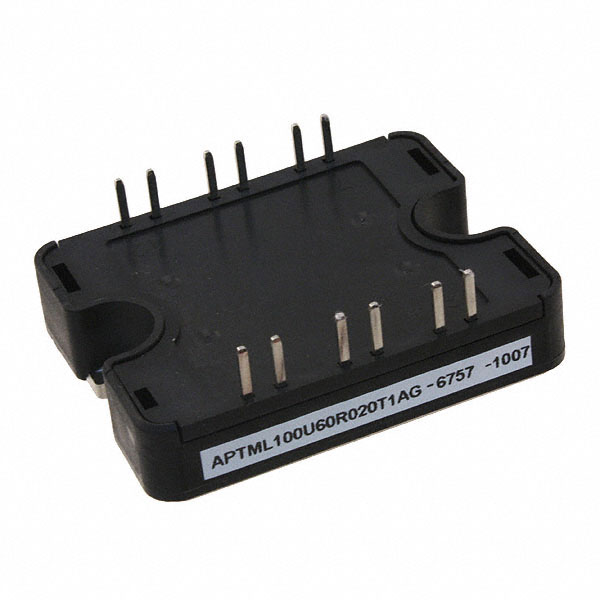

The APTML100U60R020T1AG is an N-channel MOSFET module manufactured by Microchip Technology. It features a drain-to-source voltage (Vdss) of 1000 V and operates with a continuous current capability associated with its 20 A rating. The device utilizes silicon technology and is housed in the SP1 package configuration. It supports a junction temperature range from -40°C to +150°C and has a maximum power dissipation of 520 W at case temperature. Input capacitance is specified as 6000 pF at 25 V.

Single FETs, MOSFETs Feature Summary

• High-voltage N-channel MOSFET construction for robust switching applications
• Wide operating temperature range supporting demanding thermal environments
• Integrated module design combining discrete components for simplified integration

Single FETs, MOSFETs Applications

• Industrial motor drives
• Power supply systems
• Inverter circuits

Single FETs, MOSFETs Procurement Notes

Verify component authenticity through authorized Microchip Technology distributors or certified partners. Confirm that the specific part number matches the required electrical specifications and package type before procurement. Ensure compliance with RoHS directives and relevant trade regulations applicable to your region. Request official datasheets and product change notifications to validate current manufacturing status and any potential revisions affecting form, fit, or function.

Single FETs, MOSFETs Selection Notes

Select this component when high blocking voltage and moderate current handling are required in a compact module format. Consider the SP1 package constraints for thermal management and PCB layout. Evaluate the 520 W power dissipation rating against your system's cooling capabilities. Ensure gate drive requirements align with the input capacitance characteristics for optimal switching performance.

Single FETs, MOSFETs Part Context

This part belongs to Microchip Technology's Power Module series, specifically designed for discrete and power module applications. It represents the company's silicon-based MOSFET offerings, providing a solution for engineers needing reliable high-voltage switching components in industrial and commercial power electronics designs.

Single FETs, MOSFETs Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Microchip Technology directly for cross-reference recommendations or equivalent alternatives within their portfolio.
