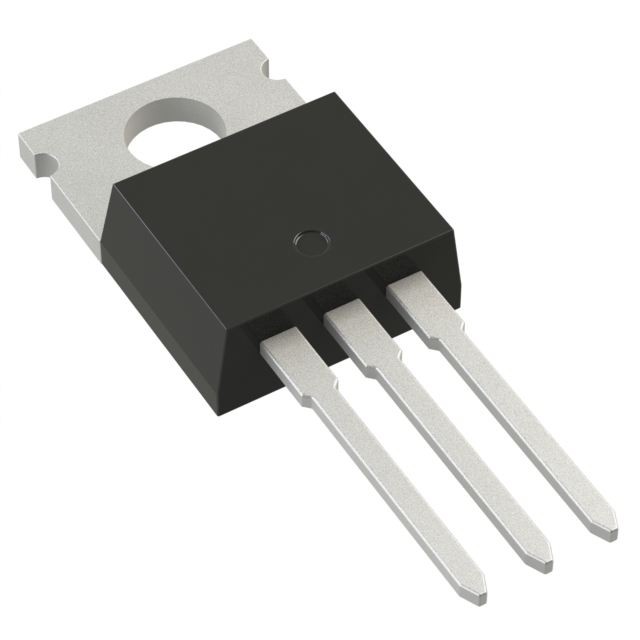

AUIRF540ZXKMA1

$1.38

Description：MOSFET_(75V 120V(
Series：HEXFET®
Mfr：Infineon Technologies
Package：Tube

SKU:ddd96c1ad7ab Category: Single FETs, MOSFETs Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AUIRF540ZXKMA1 is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Infineon Technologies. Its product description is MOSFET_(75V 120V(. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for AUIRF540ZXKMA1

Description：MOSFET_(75V 120V(
Series：HEXFET®
Mfr：Infineon Technologies
Package：Tube
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：100 V
Current - Continuous Drain (Id) @ 25°C：36A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：10V
Rds On (Max) @ Id, Vgs：26.5mOhm @ 22A, 10V
Vgs(th) (Max) @ Id：4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：63 nC @ 10 V
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：1770 pF @ 25 V
FET Feature：-
Power Dissipation (Max)：92W (Tc)
Operating Temperature：-55°C ~ 175°C (TJ)
Grade：Automotive
Qualification：AEC-Q101
Mounting Type：Through Hole
Supplier Device Package：PG-TO220-3-904
Package / Case：TO-220-3

Single FETs, MOSFETs datasheet and documents for AUIRF540ZXKMA1

AUIRF540ZXKMA1

Single FETs, MOSFETs Overview

The AUIRF540ZXKMA1 is an automotive-grade N-channel HEXFET power MOSFET manufactured by Infineon Technologies. It features a TO-220AB package and supports a drain-source voltage of 100V with a continuous drain current of 36A at 25°C case temperature. The device exhibits a maximum on-resistance of 26.5mΩ at VGS=10V and ID=22A, alongside a total gate charge of 42nC. It operates within a junction temperature range of -55°C to +175°C and includes a maximum power dissipation rating of 92W.

Single FETs, MOSFETs Feature Summary

Automotive qualified per AEC-Q101 standards for high reliability
Advanced process technology enabling ultra-low on-resistance
Capable of repetitive avalanche operation up to maximum junction temperature
Fast switching speed optimized for efficient power conversion

Single FETs, MOSFETs Applications

Automotive power distribution systems
Motor control applications in vehicles
High-side and low-side switching circuits
DC-DC converter topologies

Single FETs, MOSFETs Procurement Notes

Verify the specific suffix XKMA1 against official ordering lists to confirm packaging and tape-and-reel specifications. Ensure the component meets the required AEC-Q101 qualification level for your target automotive application. Cross-reference the datasheet revision history to validate parameter consistency before finalizing procurement orders.

Single FETs, MOSFETs Selection Notes

Select this component when designing circuits requiring robust automotive-grade performance with high current handling capabilities. The TO-220AB package facilitates effective thermal management through direct mounting to heatsinks. Consider the 175°C operating limit for high-temperature environments where standard industrial components may fail prematurely.

Single FETs, MOSFETs Part Context

This part belongs to Infineon's HEXFET family of power MOSFETs, specifically tailored for demanding automotive environments. It utilizes advanced silicon processing to minimize resistance while maintaining high breakdown voltage ratings. The product line emphasizes durability and efficiency for critical vehicle electronics.

Single FETs, MOSFETs Replacement Considerations

Consult official substitution guides for equivalent parts such as IRF540Z or IRFR540Z variants. Verify pinout compatibility and thermal resistance characteristics before implementing any alternative components in existing designs.
