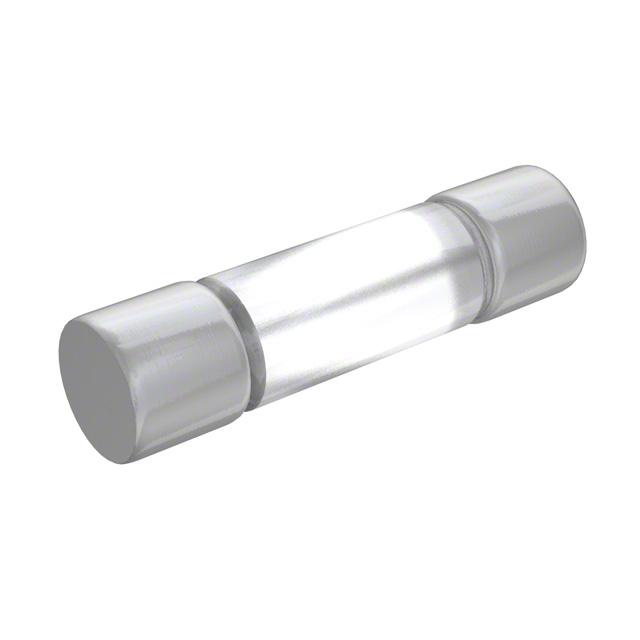

Fuses BK/S504-100MA product image

BK/S504-100MA

$4.29

Description：FUSE GLASS 100MA 250VAC 5X20MM
Series：S504
Mfr：Eaton - Electronics Division
Package：Bulk

SKU:6861e3789332 Category: Fuses Brand: Eaton - Electronics Division

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BK/S504-100MA is listed in the Fuses range at ChipApex. The manufacturer field lists Eaton - Electronics Division. Its product description is FUSE GLASS 100MA 250VAC 5X20MM. Review the specifications below when checking this part for your BOM.

Fuses specifications for BK/S504-100MA

Description：FUSE GLASS 100MA 250VAC 5X20MM
Series：S504
Mfr：Eaton - Electronics Division
Package：Bulk
Mounting Type：Requires Holder
Fuse Type：Cartridge, Glass
Current Rating (Amps)：100 mA
Voltage Rating - DC：-
Response Time：Slow Blow
Package / Case：5mm x 20mm
Breaking Capacity @ Rated Voltage：35A
Melting I²t：0.022
Approval Agency：BSI, IMQ, SEMKO, UL, VDE
Operating Temperature：-
Color：-
Size / Dimension：0.205" Dia x 0.787" L (5.20mm x 20.00mm)
Voltage Rating - AC：250 V

Fuses datasheet and documents for BK/S504-100MA
