CGGBP.35.3.A.02

Antennas RF Overview

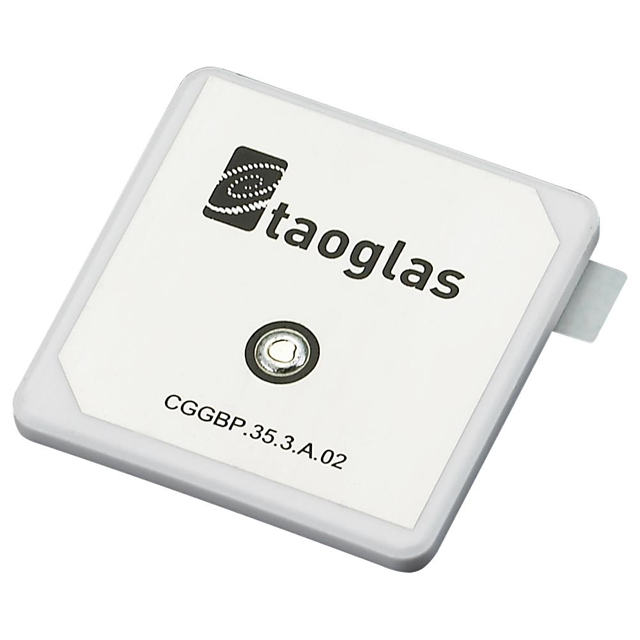

The CGGBP.35.3.A.02 is a ceramic patch antenna designed for GNSS applications, supporting GPS, GLONASS, Galileo, and BeiDou systems. It operates at a frequency of 1.602 GHz with an input impedance of 50 ohms. The component features right-hand circular polarization and measures 35 mm x 35 mm x 3 mm. Key performance metrics include a gain of up to 4.5 dBi, a VSWR of 1.8:1, and a bandwidth of 34 MHz. It utilizes adhesive or pin mounting and functions within a temperature range of -40°C to 85°C.

Antennas RF Feature Summary

• Supports multi-constellation GNSS including GPS, GLONASS, Galileo, and BeiDou
• Compact embedded ceramic patch design with right-hand circular polarization
• Maintains excellent axial ratio and phase center performance

Antennas RF Applications

• Embedded GNSS receiver modules
• Vehicle tracking and telematics systems
• Navigation devices requiring high precision positioning

Antennas RF Procurement Notes

Verify the specific ordering suffix and mechanical dimensions against the official Taoglas datasheet to ensure compatibility with the target application. Confirm that the adhesive or pin mounting option matches the assembly requirements. Check environmental compliance documentation such as RoHS status prior to finalizing procurement decisions.

Antennas RF Selection Notes

Select this model when a compact, low-profile ceramic patch antenna is required for multi-band GNSS reception. Ensure the 35 mm x 35 mm footprint fits the available space. Verify that the 50-ohm impedance and right-hand circular polarization align with the system's RF chain requirements and mounting constraints.

Antennas RF Part Context

This component belongs to the Taoglas CGGBP series of embedded patch antennas. It is engineered for applications demanding reliable satellite navigation signals in constrained spaces. The product line focuses on providing stable phase center performance and wide bandwidth for modern GNSS constellations.

Antennas RF Replacement Considerations

Consult the official Taoglas documentation for confirmed substitute part numbers. Cross-reference mechanical dimensions, impedance, and radiation patterns to ensure functional equivalence. No alternative part numbers are explicitly listed in the provided source material.
