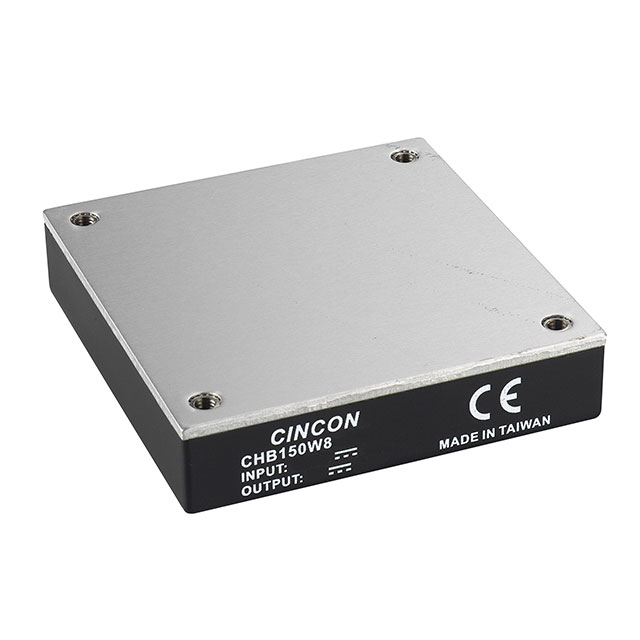

CHB150W8-36S12

CHB150W8-36S12 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Cincon Electronics Co. LTD. Its product description is DC DC CONVERTER 12V 150W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for CHB150W8-36S12

• Description：DC DC CONVERTER 12V 150W
• Series：CHB150W8 (150W)
• Mfr：Cincon Electronics Co. LTD
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：75V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：12.5A
• Power (Watts)：150 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 100°C (With Derating)
• Efficiency：89.50%
• Mounting Type：Through Hole
• Package / Case：Half Brick
• Size / Dimension：2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
• Supplier Device Package：Half Brick
• Control Features：Enable, Active High
• Approval Agency：CE, cURus
• Standard Number：60950-1
• Grade：-
• Qualification：-
