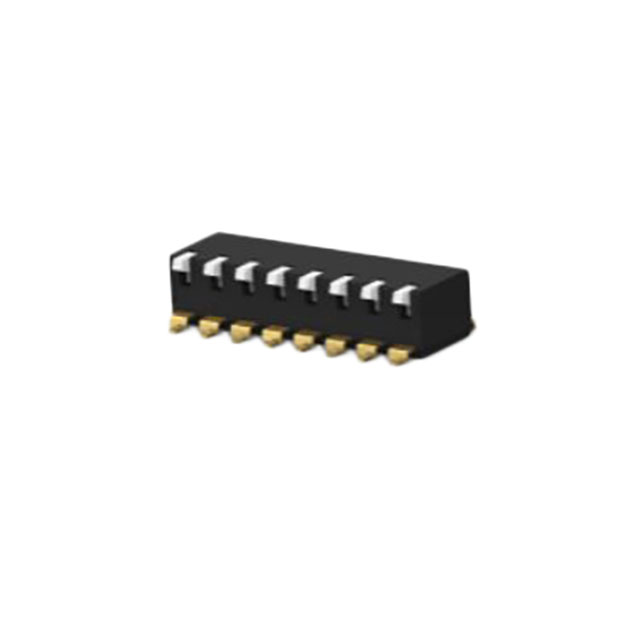

Dip Switches EDSP08SGLNNTR04 product image

EDSP08SGLNNTR04

$3.51

Description：SWITCH PIANO DIP SPST 0.025A 24V
Series：EDSP
Mfr：TE Connectivity ALCOSWITCH Switches
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:3c9ca07ef492 Category: DIP Switches Brand: TE Connectivity ALCOSWITCH Switches

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

EDSP08SGLNNTR04 is listed in the Dip Switches range at ChipApex. The manufacturer field lists TE Connectivity ALCOSWITCH Switches. Its product description is SWITCH PIANO DIP SPST 0.025A 24V. Review the specifications below when checking this part for your BOM.

Dip Switches specifications for EDSP08SGLNNTR04

Description：SWITCH PIANO DIP SPST 0.025A 24V
Series：EDSP
Mfr：TE Connectivity ALCOSWITCH Switches
Package：Tape & Reel (TR),Cut Tape (CT)
Circuit：SPST
Number of Positions：8
Current Rating (Amps)：25mA
Voltage Rating：24VDC
Actuator Type：Piano
Actuator Level：Raised
Contact Material：Copper Alloy
Contact Finish：Gold
Height Above Board：0.197" (5.00mm)
Mounting Type：Surface Mount, Right Angle
Termination Style：Gull Wing
Pitch：0.100" (2.54mm), Full
Washable：No
Features：-
Operating Temperature：-20°C ~ 85°C

Dip Switches datasheet and documents for EDSP08SGLNNTR04

EDSP08SGLNNTR04
