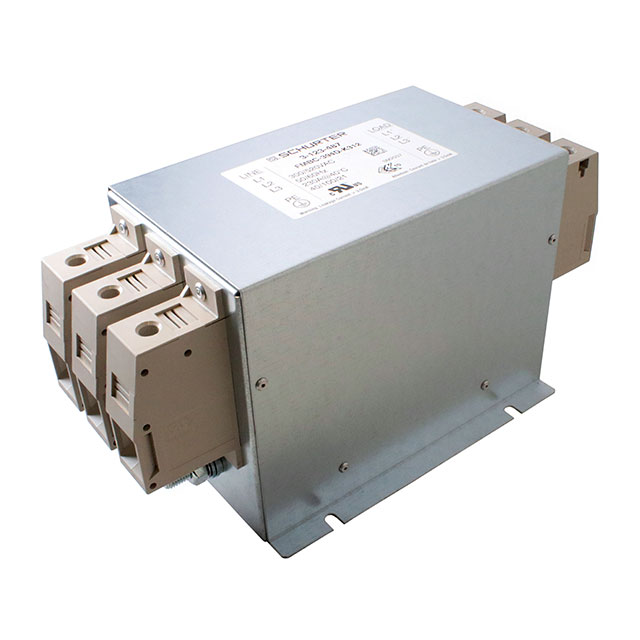

FMBC-394D-K312

$363.35

Description：LINE FLTR 520VAC 230A CHASS MNT
Series：FMBC EP
Mfr：SCHURTER Inc.
Package：Box

SKU:3ce0734932b6 Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FMBC-394D-K312 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is LINE FLTR 520VAC 230A CHASS MNT. Review the specifications below when checking this part for your BOM.

Power Line Filter Modules specifications for FMBC-394D-K312

Description：LINE FLTR 520VAC 230A CHASS MNT
Series：FMBC EP
Mfr：SCHURTER Inc.
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：520V
Current：230 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：cURus, ENEC, UL, VDE
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Power Line Filter Modules datasheet and documents for FMBC-394D-K312

FMBC-394D-K312

Power Line Filter Modules Overview

The FMBC-394D-K312 is a three-phase EMC/EMI line filter from the Schurter FMBC EP series. It features a two-stage design rated for 520V AC and 230A current. The unit utilizes terminal block mounting with screw connections. Operating temperatures range from -40°C to +100°C. Standard certifications include UL, VDE, and IEC/EN.

Power Line Filter Modules Feature Summary

Two-stage filtering architecture for enhanced noise suppression
Terminal block mounting interface for secure installation
Compliance with major international safety standards

Power Line Filter Modules Applications

General-purpose industrial equipment
Power distribution systems
Industrial machinery control panels

Power Line Filter Modules Procurement Notes

Verify the specific part number against official manufacturer documentation before procurement. Confirm that the voltage rating of 520V AC and current capacity of 230A match the system requirements. Ensure the terminal block mounting style is compatible with the intended chassis or panel layout. Check for updated certification status such as UL, VDE, and IEC/EN compliance relevant to the deployment region.

Power Line Filter Modules Selection Notes

Select this component when high current handling up to 230A is required in a three-phase configuration. The two-stage design offers superior attenuation compared to single-stage alternatives. Verify that the operating temperature range of -40°C to +100°C suits the environmental conditions. Ensure the physical dimensions and terminal type fit the available space and wiring constraints.

Power Line Filter Modules Part Context

This filter belongs to the FMBC EP series by Schurter, designed for robust industrial applications. The series provides reliable electromagnetic interference suppression for power lines. The specific model integrates high current capabilities within a standardized form factor suitable for DIN rail or panel mounting configurations.
