FMWAN137-10SF

Antennas RF Overview

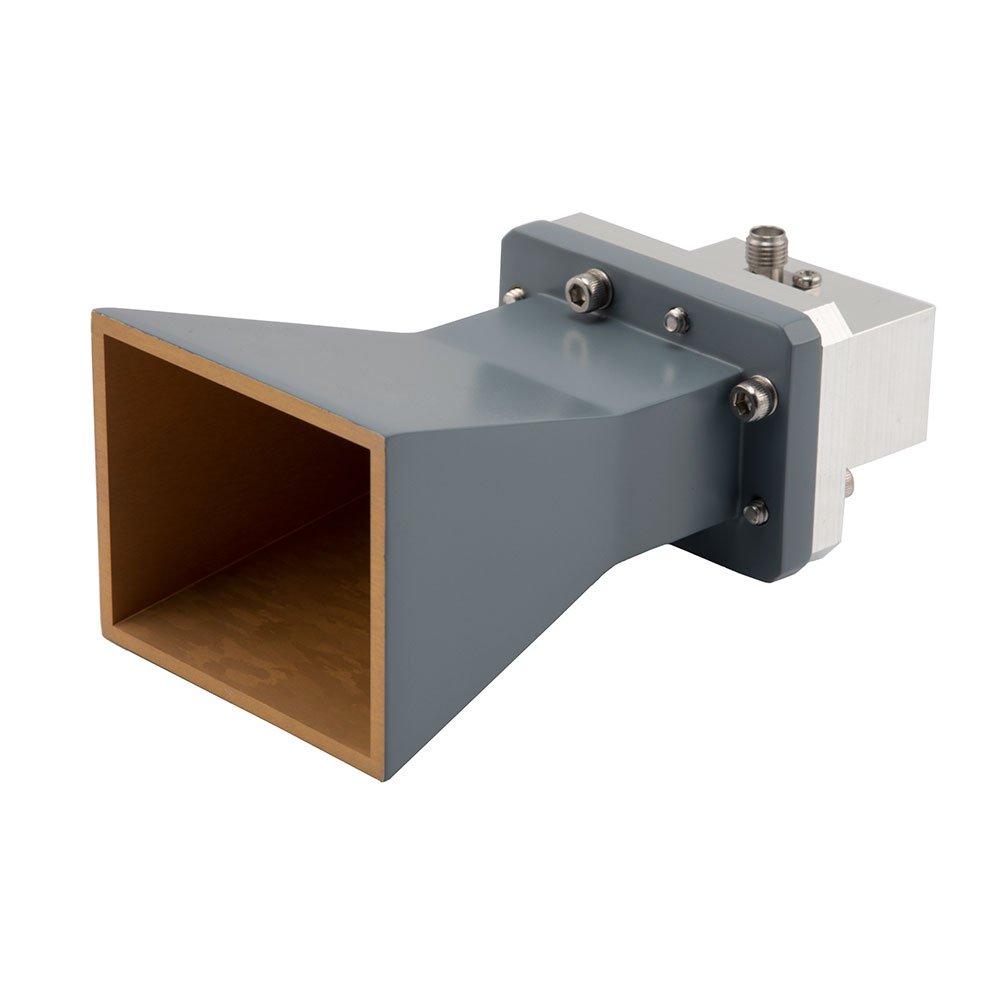

The FMWAN137-10SF is a standard gain horn waveguide antenna manufactured by Fairview Microwave. Designed for the WR-137 waveguide size, this component operates within a frequency range of 5.85 GHz to 8.2 GHz. It features an SMA female connector interface and provides a nominal gain of 10 dBi. The unit is packaged in a bag and is identified as a new product from the manufacturer.

Antennas RF Feature Summary

• Standard gain horn design optimized for WR-137 waveguide applications
• Integrated SMA female connector for direct interfacing
• Nominal gain specification of 10 dBi across the operational bandwidth

Antennas RF Applications

• Microwave measurement systems requiring calibrated reference antennas
• Test setups utilizing WR-137 waveguide components
• RF link budget analysis in the 5.85 GHz to 8.2 GHz range

Antennas RF Procurement Notes

Verify the specific ordering suffix to confirm the connector type and flange configuration match system requirements. Ensure the WR-137 waveguide dimensions align with existing infrastructure. Confirm availability status through authorized distributors, as supply levels may vary. Cross-reference the datasheet for mechanical tolerances and environmental ratings before integration.

Antennas RF Selection Notes

Select this model when a fixed 10 dBi gain is required for WR-137 band operations. The integrated SMA connector simplifies assembly compared to bare waveguide horns. Consider the physical size constraints of the horn structure. Verify that the operating frequency range fully encompasses the intended signal spectrum without significant attenuation.

Antennas RF Part Context

This antenna belongs to Fairview Microwave's standard gain horn series, which provides consistent radiation patterns for testing purposes. The WR-137 designation indicates compatibility with specific rectangular waveguide standards. These components are essential for characterizing other RF devices where known gain references are necessary for accurate S-parameter measurements.

Antennas RF Replacement Considerations

FMWAN137-10: Standard gain horn with identical specifications but potentially different connector or flange options.
