GT038P06M

$3.51

Description：MOSFET P-CH 60V 200A 350W TO-26
Series：-
Mfr：Goford Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:84375b7027e3 Category: Single FETs, MOSFETs Brand: Goford Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

GT038P06M is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Goford Semiconductor. Its product description is MOSFET P-CH 60V 200A 350W TO-26. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for GT038P06M

Description：MOSFET P-CH 60V 200A 350W TO-26
Series：-
Mfr：Goford Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：P-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：60 V
Current - Continuous Drain (Id) @ 25°C：200A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
Rds On (Max) @ Id, Vgs：4.5mOhm @ 50A, 10V
Vgs(th) (Max) @ Id：2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：386 nC @ 10 V
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：11988 pF @ 30 V
FET Feature：-
Power Dissipation (Max)：350W (Tc)
Operating Temperature：-55°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount
Supplier Device Package：TO-263

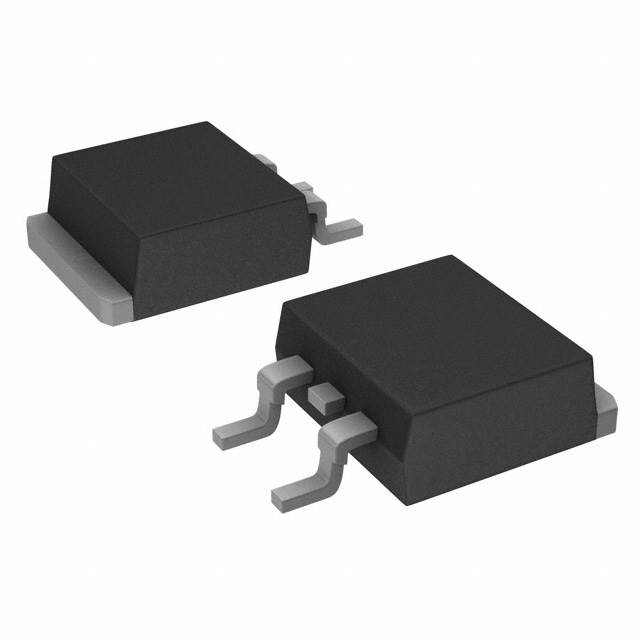

Package / Case：TO-263-3, D2PAK (2 Leads + Tab), TO-263AB

Single FETs, MOSFETs datasheet and documents for GT038P06M

GT038P06M

Single FETs, MOSFETs Overview

The GT038P06M is a P-Channel Enhancement Mode Power MOSFET manufactured by Goford Semiconductor, utilizing advanced trench technology. It features an ultra-low on-resistance of 3.6 mΩ typ at VGS = -10V and 4.9 mΩ typ at VGS = -4.5V. The device supports a continuous drain current of -200 A and a pulsed drain current of -800 A with a drain-source voltage rating of -60 V. Packaged in TO-263, it offers a maximum power dissipation of 350 W and a junction-to-case thermal resistance of 0.36 °C/W.

Single FETs, MOSFETs Feature Summary

Advanced trench technology provides excellent RDS(ON) performance and low gate charge for high efficiency.
Robust ruggedness verified through 100% avalanche testing capability.
Low thermal resistance design ensures stable operation under high power dissipation conditions.

Single FETs, MOSFETs Applications

Power switching circuits
DC/DC converters

Single FETs, MOSFETs Procurement Notes

Verify the specific datasheet revision (A1858-V1.1) matches your design requirements. Confirm that the TO-263 package dimensions align with your PCB footprint. Ensure thermal management solutions account for the specified junction-to-case resistance during high-current operation to maintain reliability within the operating temperature range.

Single FETs, MOSFETs Selection Notes

Select this component when low conduction losses are critical at both standard (-10V) and lower (-4.5V) gate drive voltages. The high current capacity makes it suitable for applications requiring significant load handling. Verify that the -60V breakdown voltage meets the system's peak voltage stress requirements.

Single FETs, MOSFETs Part Context

This part belongs to the GT series of P-Channel MOSFETs from Goford Semiconductor. It is designed for high-efficiency power management applications where low on-resistance and high current density are required. The device is RoHS compliant and intended for industrial and automotive environments.
