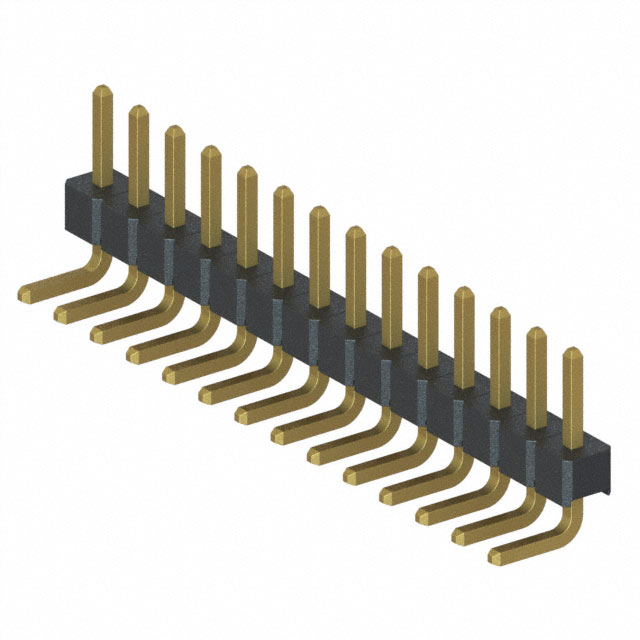

M22-2531405

Description：CONN HEADER R/A 14POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:159e44963ab7 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2531405 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 14POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2531405

Description：CONN HEADER R/A 14POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：14
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.138" (3.50mm)
Contact Length - Post：0.094" (2.40mm)
Overall Contact Length：-
Insulation Height：0.079" (2.00mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2531405

M22-2531405

Headers, Male Pins Overview

The M22-2531405 is a male pin header from the Harwin M22 series, designed for horizontal surface-mount applications. It features a single row with 14 positions and a 2 mm pitch. The contacts are gold-plated to ensure reliable signal transmission and corrosion resistance. This component is classified under Headers & Wire Housings and utilizes a tin or gold finish on the pins depending on specific variant specifications, though this part number specifically denotes a gold-plated configuration.

Headers, Male Pins Feature Summary

Horizontal surface-mount design for automated assembly
Gold-plated contact finish for enhanced conductivity
Single-row configuration with 14 positions
2 mm pitch spacing for compact circuit board integration

Headers, Male Pins Applications

Industrial control systems requiring robust connectivity
Consumer electronics with space-constrained layouts
Telecommunications equipment signal routing
Automotive electronic modules

Headers, Male Pins Procurement Notes

Verify the exact plating specification and RoHS compliance status through the official manufacturer datasheet before procurement. Confirm availability as the component may be subject to obsolescence notices. Ensure that the horizontal orientation matches the PCB footprint requirements. Cross-reference the specific suffix codes to confirm material properties and environmental ratings.

Headers, Male Pins Selection Notes

Select this component when a low-profile, horizontally mounted header is required for high-reliability connections. The gold plating offers superior performance in corrosive environments compared to standard tin finishes. Consider the 2 mm pitch compatibility with mating connectors. Evaluate the thermal management needs of the application against the connector's current carrying capacity.

Headers, Male Pins Part Context

This part belongs to the M22 series, a family of connectors known for their versatility and reliability in harsh environments. The series includes various configurations such as vertical, right-angle, and shrouded headers. The M22-2531405 specifically addresses the need for horizontal mounting solutions within this ecosystem, providing a standardized interface for system integrators.
