M50-4900945

Headers, Male Pins Overview

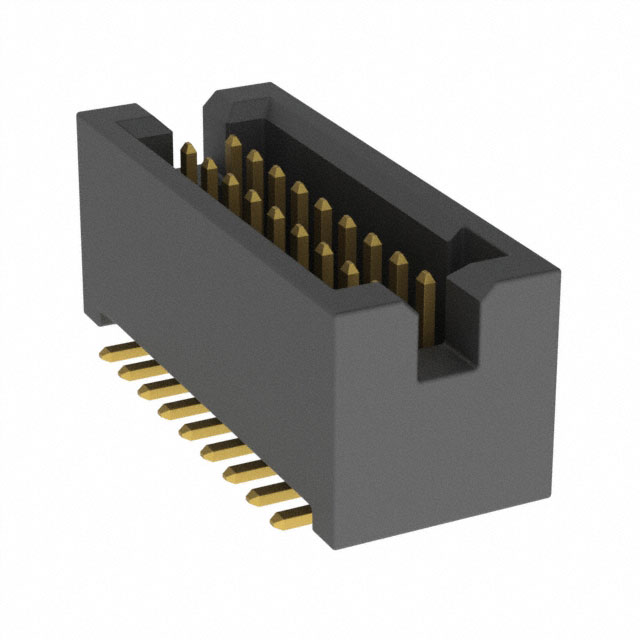

The Harwin M50-4900945 is a surface mount header from the ARCHER series, featuring 18 positions in a dual in-line configuration. It utilizes a 1.27 mm (0.05 inch) pitch with two rows of male pin contacts. The connector employs gold-plated copper alloy terminals and black thermoplastic housing. Designed for board-to-board applications, it supports a current rating of 1 A per contact and operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

• Shrouded design ensures correct mating alignment during assembly
• Gold plating provides reliable electrical conductivity and corrosion resistance
• Surface mount termination facilitates automated PCB placement

Headers, Male Pins Applications

• Board-to-board interconnections
• High-density electronic assemblies
• Industrial control modules

Headers, Male Pins Procurement Notes

Verify the specific position count and pitch against the datasheet before integration. Confirm that the surface mount footprint matches the intended PCB layout. Ensure compatibility with the mating socket assembly for proper mechanical engagement.

Headers, Male Pins Selection Notes

Select this component for applications requiring compact, high-density connections. The shrouded structure aids in preventing misalignment. Verify thermal requirements align with the specified operating temperature range.

Headers, Male Pins Part Context

This part belongs to the ARCHER M50 series, known for its low-profile design and robust performance. The series offers various configurations to meet diverse connectivity needs in modern electronics manufacturing.

Headers, Male Pins Replacement Considerations

M50-3200945 is listed as an obsolete alternative. Verify mechanical and electrical compatibility before substitution.
