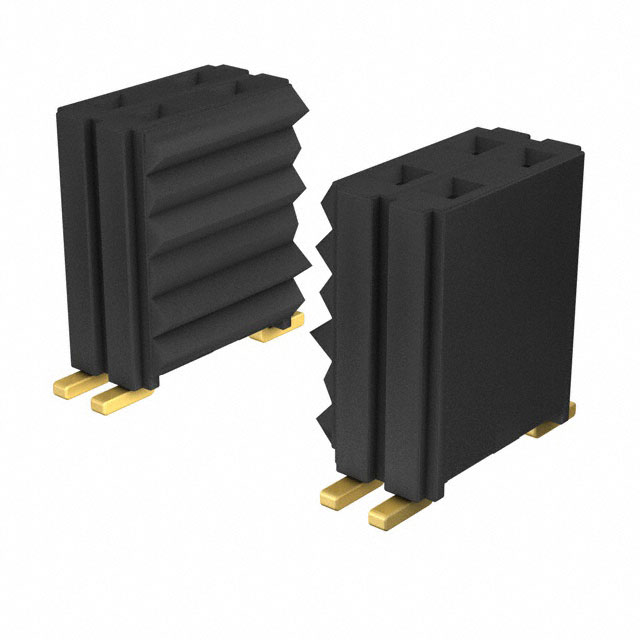

M52-5153045

Headers, Receptacles, Female Sockets Overview

The Harwin M52-5153045 is a high-reliability board-to-board connector from the Archer M52 series. It features a 1.27 mm pitch and a dual-row configuration with 60 positions. The component utilizes surface mount termination for PCB integration. Contacts are gold-plated bronze sockets designed for female mating interfaces. Rated at 500V, it supports operation between -40°C and 105°C.

Headers, Receptacles, Female Sockets Feature Summary

• Dual-row socket assembly architecture
• Gold-plated contact surfaces
• Surface mount termination style

Headers, Receptacles, Female Sockets Applications

• High-density electronic assemblies
• Industrial control systems
• Telecommunications equipment

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix against official datasheets to confirm pin count and termination type. Ensure compatibility with corresponding male headers in the same series. Confirm RoHS compliance status through manufacturer documentation prior to procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component for applications requiring compact board-to-board interconnects. The 1.27 mm pitch allows for high density. Verify that the mating partner matches the dual-row socket specification. Ensure PCB layout accommodates surface mount requirements.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Harwin Archer M52 series, known for robust performance in demanding environments. The series offers various row counts and termination options. This specific model represents a high-pin-count solution within the vertical SMT socket category.

Headers, Receptacles, Female Sockets Replacement Considerations

No direct public substitutes are confirmed. Evaluate other M52 series variants for similar pitch and row configurations if exact replacement is unavailable.
