MPVZ4006GW7U

Pressure Sensors Transducers Overview

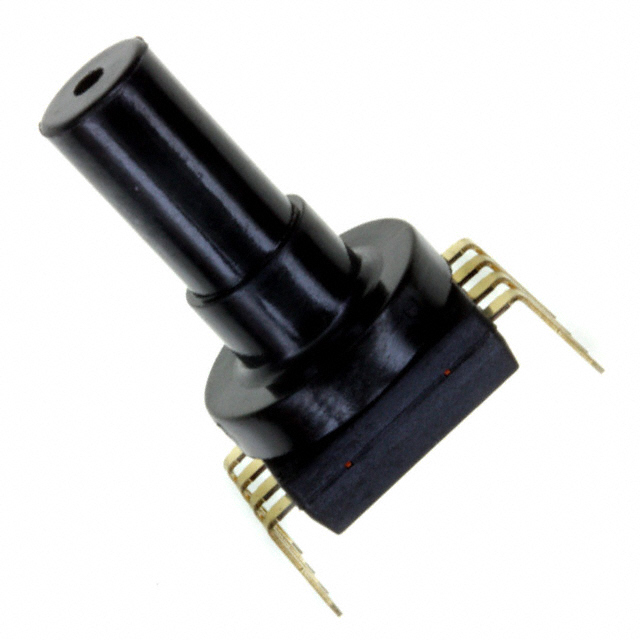

The MPVZ4006GW7U is a board-mount piezoresistive pressure sensor manufactured by NXP Semiconductors. It features a gauge pressure range of 0 to 6 kPa (0.87 psi) with an analog voltage output spanning 0.3 V to 4.6 V. The device operates on a supply voltage of 4.75 V to 5.25 V and consumes 10 mA. It utilizes an 8-pin SOP package with a single axial barbless port sized at 5.5 mm. The sensor maintains an accuracy of 5% and functions within a temperature range of -40°C to +125°C.

Pressure Sensors Transducers Feature Summary

• Integrates silicon piezoresistive sensing elements with on-chip signal conditioning for direct analog voltage output.
• Features a vented gauge design with a single axial barbless port for straightforward tubing connection.
• Provides temperature compensation to ensure stable performance across the specified operating range.

Pressure Sensors Transducers Applications

• Appliance pressure monitoring
• Consumer electronics fluid detection
• Healthcare device instrumentation

Pressure Sensors Transducers Procurement Notes

Verify the manufacturer designation, as some sources list STMicroelectronics while others indicate NXP Semiconductors for this part number. Confirm the specific package style and port configuration against your schematic requirements. Ensure the supply voltage matches the 4.75 V to 5.25 V specification. Check for any RoHS compliance documentation if required for your assembly process.

Pressure Sensors Transducers Selection Notes

Select this component when a low-pressure gauge measurement is required in a compact surface-mount form factor. The integrated signal conditioning eliminates the need for external amplification circuits. Consider the -40°C to +125°C operating range for environmental suitability. The analog output simplifies interface with standard microcontroller ADCs.

Pressure Sensors Transducers Part Context

This sensor belongs to the MPVZ4006G series of integrated silicon pressure transducers. These devices are designed for applications requiring reliable pressure sensing in consumer and health markets. The series offers a balance of accuracy and cost-effectiveness through monolithic silicon fabrication techniques.

Pressure Sensors Transducers Replacement Considerations

MPXV5004G7U is listed as a related product but has different specifications including a 0.57 psi range and 8-DIP package. Verify compatibility before substitution due to differences in pressure range and physical footprint.
