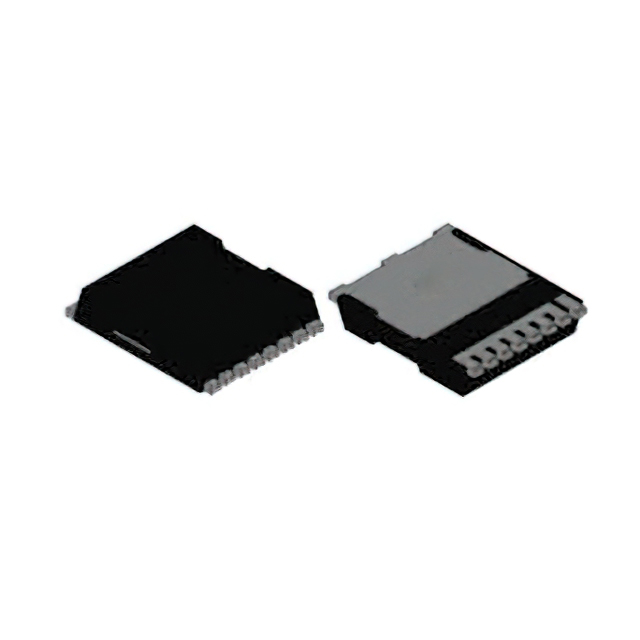

S2M0160120T

$4.86

Description：MOSFET SILICON CARBIDE SIC 1200V
Series：-
Mfr：SMC Diode Solutions
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:445f9c1a511f Category: Single FETs, MOSFETs Brand: SMC Diode Solutions

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

S2M0160120T is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists SMC Diode Solutions. Its product description is MOSFET SILICON CARBIDE SIC 1200V. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for S2M0160120T

Description：MOSFET SILICON CARBIDE SIC 1200V
Series：-
Mfr：SMC Diode Solutions
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：-
Technology：-
Drain to Source Voltage (Vdss)：-
Current - Continuous Drain (Id) @ 25°C：-
Drive Voltage (Max Rds On, Min Rds On)：-
Rds On (Max) @ Id, Vgs：-
Vgs(th) (Max) @ Id：-
Gate Charge (Qg) (Max) @ Vgs：-
Vgs (Max)：-
Input Capacitance (Ciss) (Max) @ Vds：-
FET Feature：-
Power Dissipation (Max)：-
Operating Temperature：-
Grade：-
Qualification：-
Mounting Type：-
Supplier Device Package：-
Package / Case：-

Single FETs, MOSFETs datasheet and documents for S2M0160120T

S2M0160120T

Single FETs, MOSFETs Overview

The S2M0160120T is a single Silicon Carbide (SiC) Power MOSFET packaged in a TOLL case. It features a 1200 V drain-source voltage and a continuous drain current of 17 A at 25°C. The device exhibits a typical on-resistance of 175 mΩ and supports a power dissipation of 121 W. It includes a robust intrinsic body diode with a reverse recovery time of 6.6 ns. The component operates within a junction temperature range of -55°C to +175°C.

Single FETs, MOSFETs Feature Summary

High-voltage n-channel enhancement mode construction utilizing Silicon Carbide technology for low conduction losses.
Positive temperature characteristics facilitating easy parallel operation.
Fast switching speed combined with low switching losses for high-frequency applications.
Robust intrinsic body diode designed for challenging environments.

Single FETs, MOSFETs Applications

EV Fast Charging Modules
Solar Inverters
Online UPS / Industrial UPS
SMPS (Switch Mode Power Supplies)
DC-DC Converters

Single FETs, MOSFETs Procurement Notes

Verify the specific ordering suffix 'T' corresponds to the reel shipping configuration of 1800 pieces per reel as documented in the manufacturer's ordering information. Confirm that the TOLL package marking diagram aligns with your assembly requirements. Ensure compatibility with the specified thermal resistance values for your heat sink design.

Single FETs, MOSFETs Selection Notes

Select this component for energy-sensitive, high-frequency applications requiring stable switching characteristics over extreme temperatures. The low total gate charge and fast reverse recovery make it suitable for efficient power conversion. Consider the 175 mΩ on-resistance for thermal management calculations under continuous load conditions.

Single FETs, MOSFETs Part Context

This device belongs to the SMC Diode Solutions SiC Power MOSFET lineup, specifically designed for high-voltage power electronics. The 'S2M' prefix identifies the device type, while '0160' indicates the on-resistance class and '120' denotes the 1200V rating. It is distinct from standard silicon MOSFETs due to its wide bandgap material properties.
