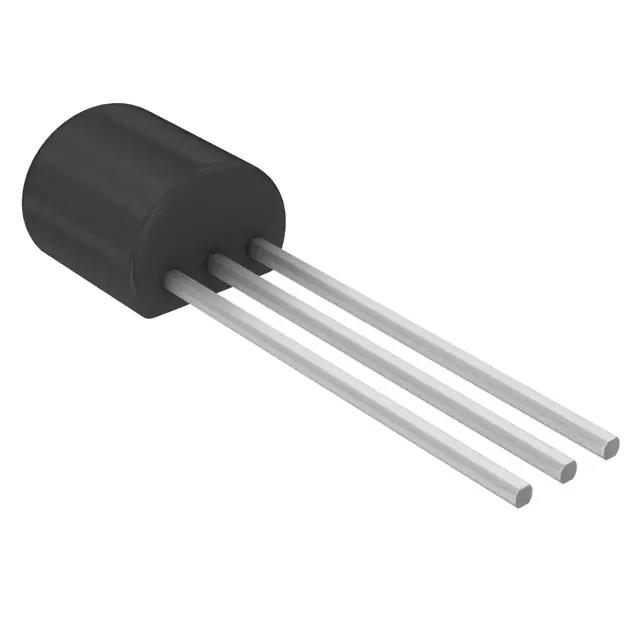

SX014CR

$1.20

Description：SCR 900V 1.25A TO92CR
Series：-

SKU:2e6a00e59f5b Category: SCRs Brand: SMC Diode Solutions

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SX014CR is listed in the Scrs range at ChipApex. The manufacturer field lists SMC Diode Solutions. Its product description is SCR 900V 1.25A TO92CR. Review the specifications below when checking this part for your BOM.

Scrs specifications for SX014CR

Description：SCR 900V 1.25A TO92CR
Series：-
Mfr：SMC Diode Solutions
Package：Bulk
Voltage - Off State：900 V
Voltage - Gate Trigger (Vgt) (Max)：800 mV
Current - Gate Trigger (Igt) (Max)：200 µA
Current - Hold (Ih) (Max)：4 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)：20A @ 50Hz
SCR Type：Sensitive Gate
Operating Temperature：-40°C ~ 110°C (TJ)
Grade：-
Qualification：-
Mounting Type：Through Hole
Package / Case：TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package：TO-92
Voltage - On State (Vtm) (Max)：1.5 V
Current - On State (It (AV)) (Max)：-
Current - On State (It (RMS)) (Max)：1.25 A
Current - Off State (Max)：5 µA

Scrs datasheet and documents for SX014CR

SX014CR

Scrs Overview

The SX014CR is a sensitive gate Silicon Controlled Rectifier (SCR) manufactured by SMC Diode Solutions. It features a maximum off-state current of 5 µA and supports an RMS on-state current rated at 1.25 A. The device has a maximum on-state voltage of 1.5 V and operates within a junction temperature range of -40°C to 110°C. It is housed in a TO-92 package, specifically TO-226AA or TO-226AB, suitable for through-hole mounting.

Scrs Feature Summary

High dv/dt rate capability with strong resistance to electromagnetic interference
Sensitive gate design for reliable triggering
Low off-state leakage current ensuring stable blocking performance

Scrs Applications

Residual current devices (RCDs)
General purpose switching applications
Electromagnetic interference resistant circuits

Scrs Procurement Notes

Verify the specific package variant (TO-226AA vs TO-226AB) against schematic requirements. Confirm thermal management needs for the 1.25 A RMS rating. Ensure gate sensitivity parameters match the driving circuit capabilities. Check datasheet revisions for any updates to electrical characteristics or mechanical dimensions prior to finalizing procurement.

Scrs Selection Notes

Select this component when high dv/dt immunity is required in sensitive gate SCR applications. The 1.25 A RMS current rating suits moderate power switching tasks. Consider the TO-92 package for through-hole assembly constraints. Evaluate the 5 µA max off-state current for leakage-sensitive designs. Verify operating temperature range compatibility with the intended environment.

Scrs Part Context

The SX014CR belongs to the SX series of SCRs from SMC Diode Solutions. This series emphasizes robustness against electromagnetic interference and high dv/dt rates. It complements other discrete thyristors in protection and switching roles. The TO-92 form factor provides a compact solution for through-hole PCB layouts requiring reliable latching behavior.

Scrs Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference with other SMC Diode Solutions SCRs having similar 1.25 A ratings and TO-92 packages only if official substitution data is verified.
