SX5M8.000D10F20TNN

Oscillators Overview

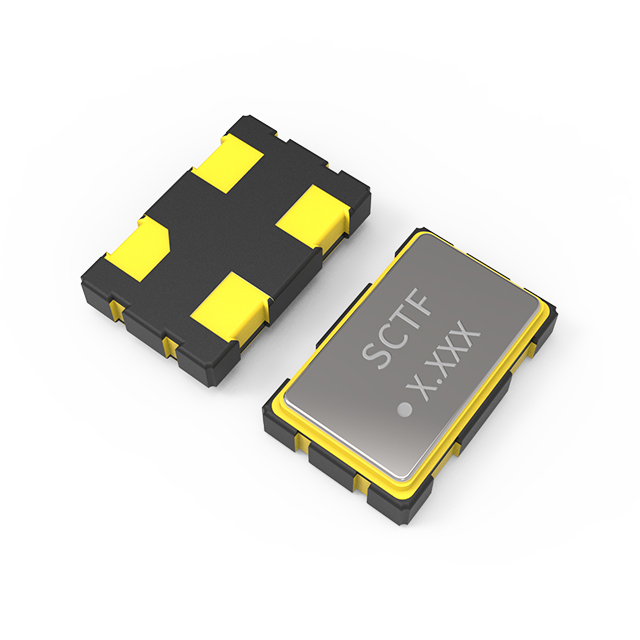

The SX5M8.000D10F20TNN is an 8 MHz crystal oscillator manufactured by Shenzhen SCTF Electronics. It utilizes CMOS output technology and operates at a supply voltage of 1.8V. The component features an enable/disable control function for power management. It is housed in a compact 4-SMD, no-lead surface-mount package designed for automated assembly processes.

Oscillators Feature Summary

• Integrates CMOS output drivers for digital logic compatibility
• Includes enable/disable pin functionality to reduce power consumption during idle states
• Utilizes a leadless SMD form factor for space-constrained PCB layouts

Oscillators Applications

• Embedded systems requiring precise clock timing
• Portable consumer electronics with battery constraints
• Industrial control modules needing stable frequency references

Oscillators Procurement Notes

Verify the specific suffix D10 against official datasheets to confirm tolerance and temperature range specifications. Ensure the 1.8V supply requirement aligns with system design before procurement. Confirm the enable/disable pin configuration matches the target circuit schematic to avoid functional mismatches.

Oscillators Selection Notes

Select this model when a low-voltage 1.8V operation is required alongside active power-down capabilities. The CMOS output type suits direct interfacing with standard digital logic families. Evaluate the 4-SMD footprint dimensions against available board space constraints prior to integration.

Oscillators Part Context

This component belongs to the series of surface-mount crystal oscillators produced by Shenzhen SCTF Electronics. These devices are engineered to provide stable frequency generation for microcontrollers and communication interfaces in modern electronic assemblies.

Oscillators Replacement Considerations

The variant SX5M8.000B10F20TNN serves as a technical alternative within the same product family. This substitute maintains identical frequency and package characteristics but operates at a 3.3V supply voltage instead of 1.8V.
