APTC60SKM24T1G

Single FETs, MOSFETs Overview

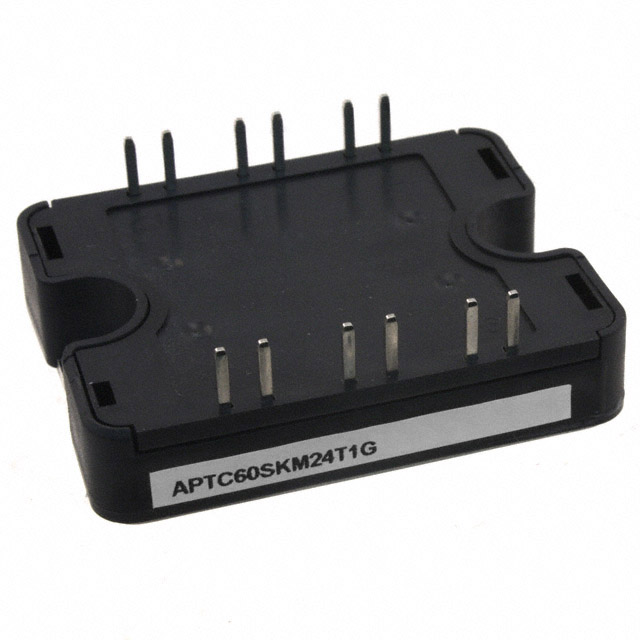

The APTC60SKM24T1G is a silicon-based MOSFET module belonging to the PM-MOSFET-CoolMOS-SP1 product family manufactured by Microchip Technology. It utilizes CoolMOS SP1 technology and is housed in an SP1 package configuration. The component is classified under discrete and power modules and complies with RoHS standards.

Single FETs, MOSFETs Feature Summary

• Integrates CoolMOS SP1 technology for optimized switching performance
• Designed as a single-packaged MOSFET module solution
• Constructed using silicon semiconductor material

Single FETs, MOSFETs Applications

• Power supply systems requiring efficient switching
• Industrial motor drive applications
• General-purpose power conversion circuits

Single FETs, MOSFETs Procurement Notes

Verify the specific datasheet version and errata documents, such as the SP1 to SP1F module package clarification, prior to implementation. Confirm that the tube packaging aligns with assembly requirements. Ensure compatibility with the designated thermal management infrastructure for the SP1 package form factor.

Single FETs, MOSFETs Selection Notes

Select this component when a robust silicon MOSFET module with CoolMOS SP1 characteristics is required. Consider the SP1 package dimensions and screw-mount installation style during mechanical design. Evaluate thermal dissipation needs against the module's power handling capabilities within the specified operating temperature range.

Single FETs, MOSFETs Part Context

This module is part of Microchip's broader portfolio of discrete and power modules. It shares the SP1 package platform with other components in the series, providing a standardized mounting interface. The CoolMOS SP1 technology lineage focuses on reducing switching losses and improving overall system efficiency in power electronics designs.
