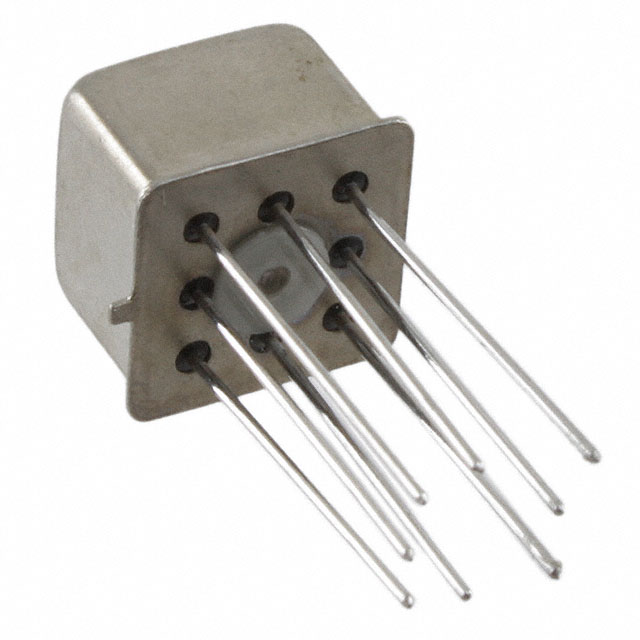

Signal Relays, Up To 2 Amps JMGACDD-26MW product image

JMGACDD-26MW

$91.66

Description：RELAY GEN PURPOSE DPDT 1A 26.5V
Series：MGA, CII
Mfr：TE Connectivity Aerospace, Defense and Marine
Package：Bulk

SKU:dd3e791806ca Category: Signal Relays, Up to 2 Amps Brand: TE Connectivity Aerospace, Defense and Marine

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

JMGACDD-26MW is listed in the Signal Relays, Up To 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Aerospace, Defense and Marine. Its product description is RELAY GEN PURPOSE DPDT 1A 26.5V. Review the specifications below when checking this part for your BOM.

Signal Relays, Up To 2 Amps specifications for JMGACDD-26MW

Description：RELAY GEN PURPOSE DPDT 1A 26.5V
Series：MGA, CII
Mfr：TE Connectivity Aerospace, Defense and Marine
Package：Bulk
Mounting Type：Through Hole
Coil Voltage：26.5VDC
Contact Form：DPDT (2 Form C)
Contact Rating (Current)：1:00 AM
Switching Voltage：28VDC - Nom
Load - Max Switching：-
Coil Current：17 mA
Coil Type：Non Latching
Features：-
Termination Style：PC Pin
Seal Rating：Sealed - Hermetically
Coil Insulation：-
Must Operate Voltage：14.8 VDC
Must Release Voltage：1.8 VDC
Operate Time：2 ms
Release Time：4 ms
Operating Temperature：-65°C ~ 125°C
Contact Material：Silver Palladium (AgPd), Gold (Au)
Approval Agency：-
Relay Type：General Purpose
Grade：Military
Qualification：MIL-R-39016/19

Signal Relays, Up To 2 Amps datasheet and documents for JMGACDD-26MW

JMGACDD-26MW
